ASUSTeK Pro PC Z890 Creator WiFi
128 GB DDR5 (4 modules) RAM · 4 TB NVMe (2 × 2 TB M.2 SSDs) · NVIDIA GeForce RTX 5090 (32 GB GDDR7) + Intel Graphics (integrated) · Intel Core Ultra 9 285K (Series 2) · 24 cores (8 P-cores + 16 E-cores) / 24 threads
Enquire about the ASUSTeK Pro PC Z890 Creator WiFi, a custom-built workstation on an ASUS ProArt Z890-Creator WiFi motherboard, to rent or buy in India. The requested setup is an Intel Core Ultra 9 285K, 128 GB DDR5, two 2 TB NVMe SSDs and an NVIDIA GeForce RTX 5090 32 GB; the exact configuration is confirmed in your quotation.
1 / 4
Is this the right desktop for your work?
3D rendering, simulation and GPU compute
An RTX 5090 with 32 GB of graphics memory and a 24-core processor suits GPU rendering, simulation and local AI model work. Check your application’s hardware requirements and confirm the configuration before booking.
Video editing and colour work
Thunderbolt 5 for fast external storage, 10 Gb Ethernet for shared storage and 128 GB of memory suit high-resolution editing and colour grading. Validate your storage and monitors before ordering.
Short-term high-end projects
For a production, event or pilot that needs top-end hardware for weeks rather than years, renting avoids buying a workstation outright. Share the project dates and software in your enquiry.
Processor & graphics
The build pairs an Intel Core Ultra 9 285K on the Z890 platform with an NVIDIA GeForce RTX 5090 graphics card. Processor and graphics card are the owner’s stated components and are confirmed on the unit before quotation.
Show 7 specificationsHide specifications
| Processor | Intel Core Ultra 9 285K (Series 2) Confirm with sales Owner-stated for this custom build. ASUS lists Core Ultra (Series 2) support for the board. Confirm the installed processor in System Information. Intel — Core Ultra 9 285K specificationsASUS India — ProArt Z890-CREATOR WIFI tech specs |
|---|---|
| CPU | 24 cores (8 P-cores + 16 E-cores) / 24 threads Confirm with sales Intel’s figures for the Core Ultra 9 285K; confirm the installed processor. Intel — Core Ultra 9 285K specifications |
| CPU clocks & power | Up to 5.7 GHz max turbo (P-cores 3.7–5.5 GHz, E-cores 3.2–4.6 GHz); 125 W base, 250 W max turbo power Intel’s figures for the Core Ultra 9 285K. Max turbo is a single-core maximum, not a sustained all-core figure. Intel — Core Ultra 9 285K specifications |
| CPU cache | 36 MB Intel Smart Cache + 40 MB L2 Intel — Core Ultra 9 285K specifications |
| Motherboard | ASUS ProArt Z890-Creator WiFi (Intel Z890 chipset, LGA1851 socket, ATX) Confirm with sales Named by the owner; ProArt branding is visible on the board in the photos. Confirm the model in System Information (BaseBoard Product). ASUS India — ProArt Z890-CREATOR WIFI tech specs |

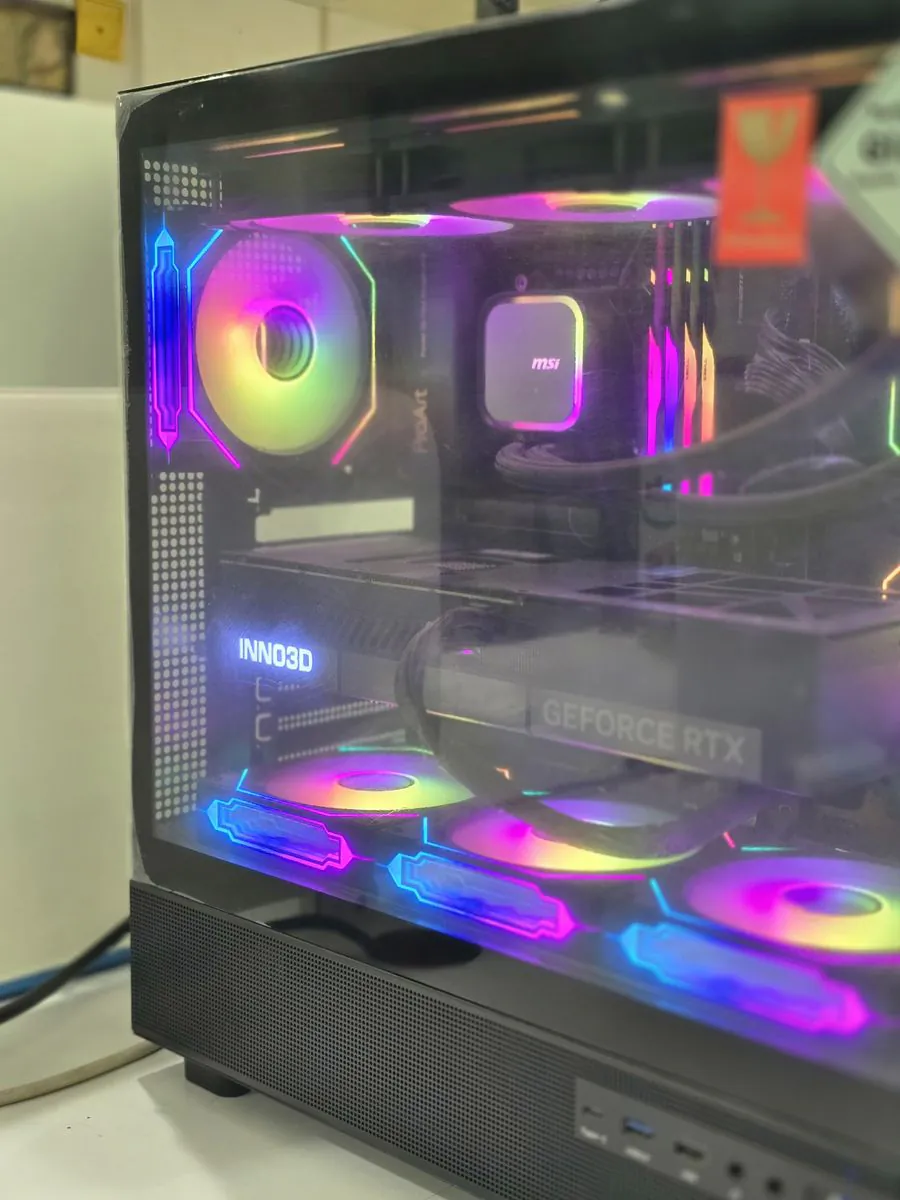

| Graphics | NVIDIA GeForce RTX 5090 (32 GB GDDR7) + Intel Graphics (integrated) Confirm with sales Owner-stated. The photos show an Inno3D GeForce RTX card; its model number is not legible. Confirm with GPU-Z or the card label. NVIDIA India — GeForce RTX 5090Inno3D — GeForce RTX 5090 X3 |
| RTX 5090 specifications | 21,760 CUDA cores, 32 GB GDDR7 on a 512-bit bus, up to 2.41 GHz boost, 575 W total graphics power, 3 × NVENC encoders with AV1 NVIDIA’s reference figures. Partner cards such as Inno3D’s set their own clocks. NVIDIA India — GeForce RTX 5090 |
Memory & upgrades
ASUS documents four DDR5 memory slots, five M.2 SSD slots and four SATA ports on this motherboard. Supported upgrades do not establish what is installed in the unit.
Show 6 specificationsHide specifications
| Installed memory | 128 GB DDR5 (4 modules) Confirm with sales Owner-stated capacity; four modules are visible in the photos. Confirm module size and configured speed. ASUS India — ProArt Z890-CREATOR WIFI tech specs |
|---|---|
| Documented memory rate | DDR5 up to 6400 MT/s for the processor (Intel); the motherboard lists up to 9066+ MT/s as an overclock Neither ASUS nor Intel gives a rate for four modules totalling 128 GB. Confirm the configured speed on the unit. Intel — Core Ultra 9 285K specificationsASUS India — ProArt Z890-CREATOR WIFI tech specs |
| RAM slots & upgrades | 4 DDR5 DIMM slots (dual channel), up to 256 GB; non-ECC unbuffered, CUDIMM supported Four modules are visible in the owner’s photos, so every slot appears to be in use; more memory means replacing modules. ASUS India — ProArt Z890-CREATOR WIFI tech specsIntel — Core Ultra 9 285K specifications |
| Installed storage | 4 TB NVMe (2 × 2 TB M.2 SSDs) Confirm with sales Owner-stated. Confirm the drive models and which M.2 slots they use. ASUS India — ProArt Z890-CREATOR WIFI tech specs |
| SSD slots & upgrades | 5 × M.2 (1 × PCIe 5.0 x4 from the CPU, 4 × PCIe 4.0 x4 from the chipset) and 4 × SATA 6 Gb/s Two M.2 slots hold the requested drives, which would leave three free. The spec page does not list the supported M.2 lengths. ASUS India — ProArt Z890-CREATOR WIFI tech specsASUS press release — Z890 motherboards |
| Expansion slots | 2 × PCIe 5.0 x16 (x16, or x8/x8 with two cards) and 1 × PCIe 4.0 x16 slot running at x4 The RTX 5090 card is about three slots thick, which can cover a slot below it. ASUS India — ProArt Z890-CREATOR WIFI tech specs |
Size & mounting
A custom-built tower. Keyboard, mouse and display are separate quote items.
Show 3 specificationsHide specifications

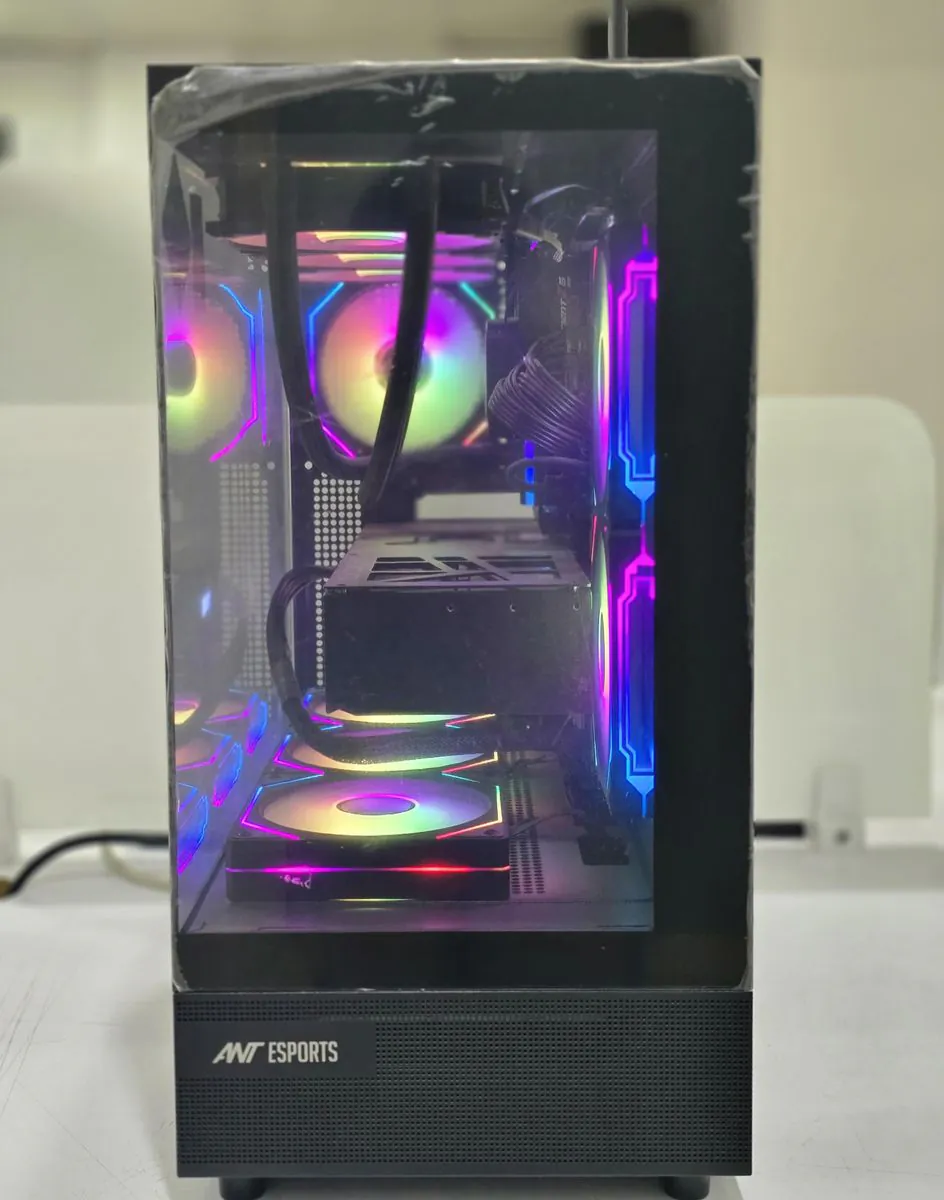

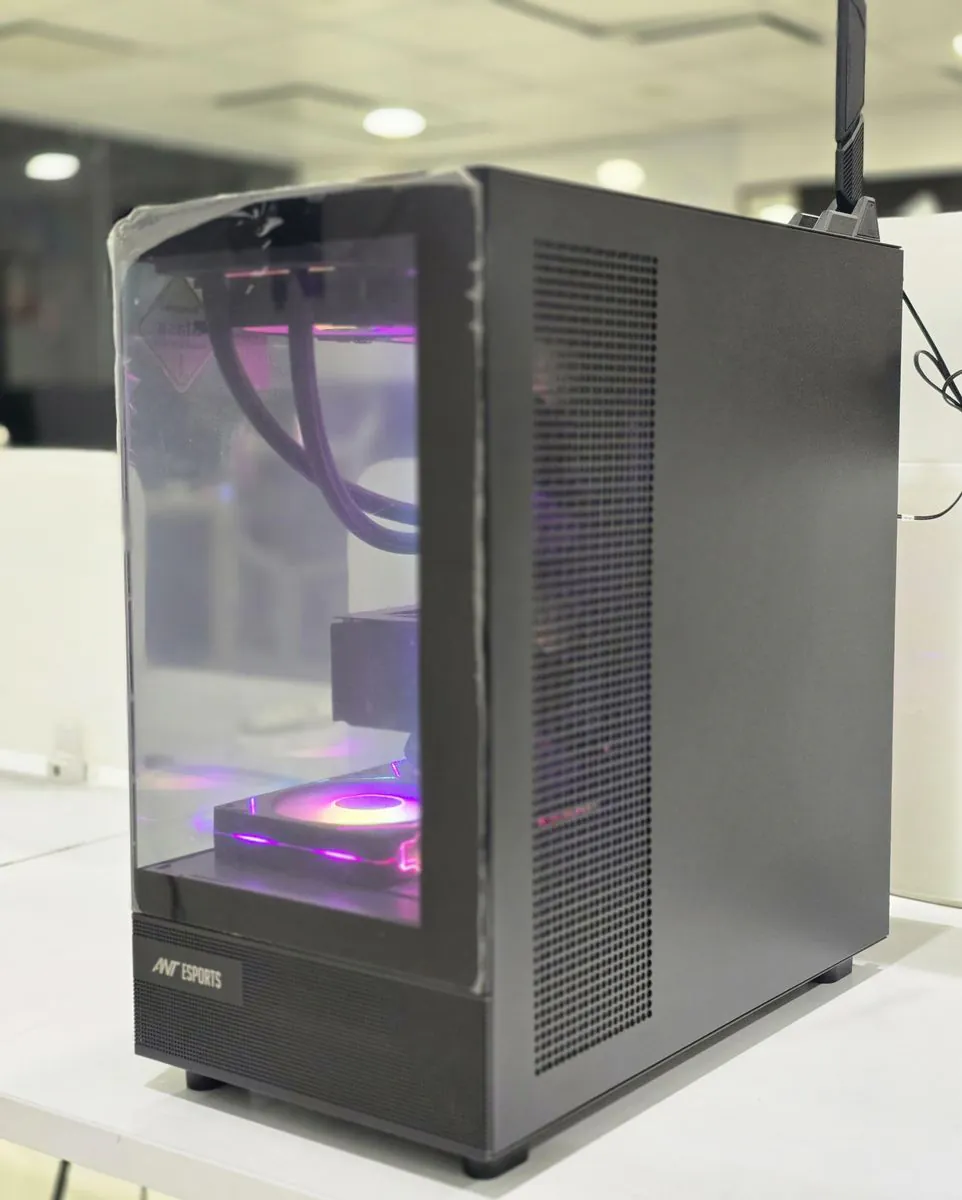

| Form factor | Tower desktop: ATX motherboard in an Ant Esports dual-chamber glass case Confirm with sales The case brand is from the owner’s photos, which also show an MSI all-in-one liquid CPU cooler. The exact case and cooler models were not identified. ASUS India — ProArt Z890-CREATOR WIFI tech specsAnt Esports — gaming cabinets |
|---|---|
| Dimensions | To confirm; depends on the case model Confirm with sales Ant Esports publishes dimensions per case model, and this case’s model is not yet identified. Ant Esports — gaming cabinets |
| Weight | To confirm; weigh the assembled unit Confirm with sales No official weight exists for a custom build. Ant Esports — gaming cabinets |
Power supply
The build uses an internal ATX power supply. The RTX 5090 sets the power budget.
Show 1 specificationsHide specifications
| Power supply | Internal ATX power supply; model and wattage to confirm Confirm with sales NVIDIA lists 1000 W required system power for the RTX 5090 (575 W total graphics power) and Intel lists 250 W max turbo power for the 285K. Confirm the installed unit’s wattage. NVIDIA India — GeForce RTX 5090Inno3D — GeForce RTX 5090 X3Intel — Core Ultra 9 285K specifications |
|---|
Ports & networking
The motherboard supplies the rear ports and networking; the graphics card adds its own display outputs, and the case has its own front panel.
Show 4 specificationsHide specifications
| Front ports | Case front panel with USB-C, USB-A ports and audio jacks; exact ports and speeds to confirm Confirm with sales Visible in the photos. The motherboard provides front headers for 1 × USB 20 Gbps Type-C, 2 × USB 5 Gbps and 2 × USB 2.0; the case decides which are wired out. ASUS India — ProArt Z890-CREATOR WIFI tech specsAnt Esports — gaming cabinets |
|---|---|
| Rear ports | 2 × Thunderbolt 5 (USB-C), 1 × USB4/Thunderbolt 4 (USB-C), 6 × USB 10 Gbps Type-A, 1 × USB 2.0 Type-A, 1 × HDMI, 1 × DisplayPort input, 2 × RJ45 Ethernet, 2 × audio jacks, BIOS FlashBack button ASUS specification for the ProArt Z890-Creator WiFi. A port’s advertised maximum is not measured throughput. ASUS India — ProArt Z890-CREATOR WIFI tech specsASUS press release — Z890 motherboards |
| Display outputs | RTX 5090 card: 3 × DisplayPort 2.1b + 1 × HDMI 2.1b. Motherboard: 1 × HDMI and video over the Thunderbolt ports The motherboard’s DisplayPort is an input, not an output. Validate your monitors, resolutions and cables before ordering. NVIDIA India — GeForce RTX 5090Inno3D — GeForce RTX 5090 X3ASUS India — ProArt Z890-CREATOR WIFI tech specs |
| Networking | Marvell AQtion 10 Gb Ethernet + Intel 2.5 Gb Ethernet; Wi-Fi 7 (802.11be, 2 × 2) and Bluetooth 5.4 ASUS India — ProArt Z890-CREATOR WIFI tech specsASUS press release — Z890 motherboards |
Software & security
Confirm the installed Windows edition, licence and TPM setting on the unit.
Show 3 specificationsHide specifications
| Operating system | Motherboard support: Windows 11 (22H2 or later) Confirm the installed edition, version and licence. ASUS India — ProArt Z890-CREATOR WIFI tech specs |
|---|---|
| Security | SPI TPM header on the motherboard; TPM setting to confirm Confirm with sales ASUS’s spec page lists the TPM header but does not mention Intel PTT firmware TPM. Confirm what is enabled on the unit. ASUS India — ProArt Z890-CREATOR WIFI tech specs |
| Audio | Realtek ALC1220P 7.1-channel codec (120 dB SNR playback, 113 dB SNR recording) ASUS India — ProArt Z890-CREATOR WIFI tech specs |
Confirm the desktop. Then confirm the terms.
- This is a custom-built workstation, not a factory ASUS system. ASUSTeK makes the motherboard; the case (Ant Esports), cooler (MSI) and graphics card (Inno3D) come from other makers, so there is no single manufacturer specification sheet or system warranty.
- The processor, memory, SSDs, graphics card and power supply are the owner’s stated build and are confirmed on the unit in your quotation.
- Plan a power socket and UPS for NVIDIA’s 1000 W system-power requirement. Monitor, keyboard and mouse are separate items; list what you need in your enquiry.
- Share quantity, workload, city and required date. Confirm availability, price, GST, delivery charges and warranty provider, duration and exclusions.
Related options: Rental product categoriesAvailable productsContact SPURGERead our sales terms.
ASUSTeK Pro PC Z890 Creator WiFi FAQs
Is this a PC made by ASUS?
No. It is a custom build on an ASUS ProArt Z890-Creator WiFi motherboard, with a case, cooler and graphics card from other makers. The board’s ports and limits come from ASUS’s specification; the installed components are confirmed on the unit.
ASUS India — ProArt Z890-CREATOR WIFI tech specsDoes it have Thunderbolt 5?
Yes. ASUS lists two Thunderbolt 5 USB-C ports and one USB4/Thunderbolt 4 USB-C port on the rear of the ProArt Z890-Creator WiFi, alongside six 10 Gbps USB-A ports.
ASUS India — ProArt Z890-CREATOR WIFI tech specsASUS press release — Z890 motherboardsCan the memory and storage be upgraded?
The board takes up to 256 GB in four DDR5 slots, and all four appear to be in use, so more memory means larger modules. It has five M.2 slots; two 2 TB drives would leave three free, plus four SATA ports.
ASUS India — ProArt Z890-CREATOR WIFI tech specsWhat power does it need?
NVIDIA lists 1000 W required system power for the RTX 5090. Use a suitable socket and UPS, and confirm the installed power supply’s wattage with the quote.
NVIDIA India — GeForce RTX 5090How do I request this workstation from SPURGE?
Send your workload, quantity, city and required date. SPURGE confirms the exact components, accessories and OS licence and quotes rental or purchase terms before an order.
Check the facts at the source.
- ProArt Z890-CREATOR WIFI | Motherboard | ASUS India - Tech Specs
Motherboard specification: socket, chipset, memory, M.2/SATA, expansion slots, rear and internal I/O, networking, audio, TPM header, OS support and form factor. It documents the board, not the installed components. Checked .
- ASUS Unveils ROG Maximus, ROG Strix, TUF Gaming, Prime, and ProArt Z890 Motherboards (Taipei, October 10, 2024)
Launch announcement: ProArt Z890-Creator WiFi with dual Thunderbolt 5, 10G and 2.5G Ethernet, Wi-Fi 7 and five M.2 slots. Checked .
- Intel Core Ultra 9 Processor 285K (36M Cache, up to 5.70 GHz) — specifications
Processor component facts: cores/threads, clocks, cache, power, memory rate and integrated graphics. Processor memory limits are not used as system capabilities. Checked .
- GeForce RTX 5090 Graphics Cards | NVIDIA (India)
Reference specifications: CUDA cores, clocks, 32 GB GDDR7, 575 W total graphics power, 1000 W required system power, outputs and encoders. The page’s price and availability placeholders are not used. Checked .
- INNO3D GeForce RTX 5090 X3 — specifications
One of Inno3D’s RTX 5090 cards; the fitted Inno3D model is not identified. Used only for facts common to its RTX 5090 range: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b and a 1000 W minimum power supply. Checked .
- Ant Esports gaming cabinet collection
Case maker’s range listing. The exact dual-chamber case model in the photos was not identified, so no case dimensions or ports are taken from it. Checked .
