Lenovo ThinkPad P1 Gen 3 — Intel Core i7, 10th Gen

10th Gen Intel Core i7-10850H

USA reference SKU 20TH000AUS (machine type 20TH). The owner-supplied “Core i7, 10th Gen H-series, 6 cores” also matches the i7-10750H, which appears in equivalent European SKUs; confirm the CPU on the supplied unit.

6 cores / 12 threads

6 cores and 12 threads are documented for both 6-core options (i7-10750H and i7-10850H).

2.7 GHz base, up to 5.1 GHz maximum turbo (i7-10850H)

Turbo figures are maximums, not sustained all-core guarantees; thermals and power mode affect clocks.

12 MB

NVIDIA Quadro T1000 with Max-Q Design · 4 GB GDDR6

Documented in the graphics table and installed in the 20TH000AUS reference SKU, announced 2020-10-13.

Intel UHD Graphics (integrated) also documented alongside the discrete GPU

Up to 4 independent displays (native display plus 3 external via HDMI and Thunderbolt); HDMI up to 4K at 60 Hz; Thunderbolt up to 5K at 60 Hz

Published monitor-support limits; validate the intended resolution, refresh and dock combination.

16 GB DDR4 (1 × 16 GB SO-DIMM, non-ECC)

Single 16 GB module documented in the 20TH000AUS reference SKU; one SO-DIMM slot remains free.

DDR4-2933 (SO-DIMM, non-ECC)

Lenovo notes non-ECC memory is actually DDR4-3200 but may run at DDR4-2933 due to processor limitation. A supplied “3200 MHz” figure matches the module rating, not the documented operating rate.

2 removable SO-DIMM slots, dual-channel capable; up to 64 GB DDR4-2933 documented. The reference ships 1 × 16 GB, leaving one slot free.

64 GB maximum is based on Lenovo memory offerings at test time; 2 × 32 GB factory SKUs exist. Actual occupied/free slots need inspection.

512 GB M.2 2280 PCIe NVMe SSD

Opal-capable drive documented in the 20TH000AUS reference SKU.

2 × M.2 2280 SSD slots, PCIe NVMe 3.0; up to 2 TB per drive documented; RAID 0/1 support. The reference lists one 512 GB drive, so the second slot is expected free.

Supported capacity is based on Lenovo storage offerings at test time. Confirm actual drive identity and free slot on the supplied unit.

15.6 inches

1920 × 1080 (FHD), non-touch in the reference configuration

IPS, 500 nits, anti-glare, 72% NTSC, Dolby Vision HDR

The base FHD option is 300 nits without Dolby Vision, and UHD IPS/OLED options exist. Confirm the panel on the supplied unit.

361.8 × 245.7 × 18.4 mm (non-touch models)

Touch models are 18.7 mm. Lenovo notes dimensions vary by configuration.

1.7 kg (non-touch models); 1.8 kg for touch models

Published figure for non-touch models, not a measurement of a supplied unit; charger weight is separate.

80 Wh integrated Li-Polymer

MobileMark 2014: 15.9 hr; MobileMark 2018: 12 hr; JEITA 2.0: 17.1 hr

Approximate maxima from benchmark tests; Lenovo states actual life varies with configuration, software, wireless use, power settings and brightness, and capacity decreases with age. A renewed unit needs its own battery-health check.

Rapid Charge: up to 80% in 1 hour with the 135 W AC adapter

Manufacturer claim with its own adapter; charging temperature must be 10°C or higher.

135 W slim-tip AC adapter (USA reference: 2-pin)

170 W is documented for higher configurations and offerings vary by country. Confirm the adapter and plug type supplied with the unit.

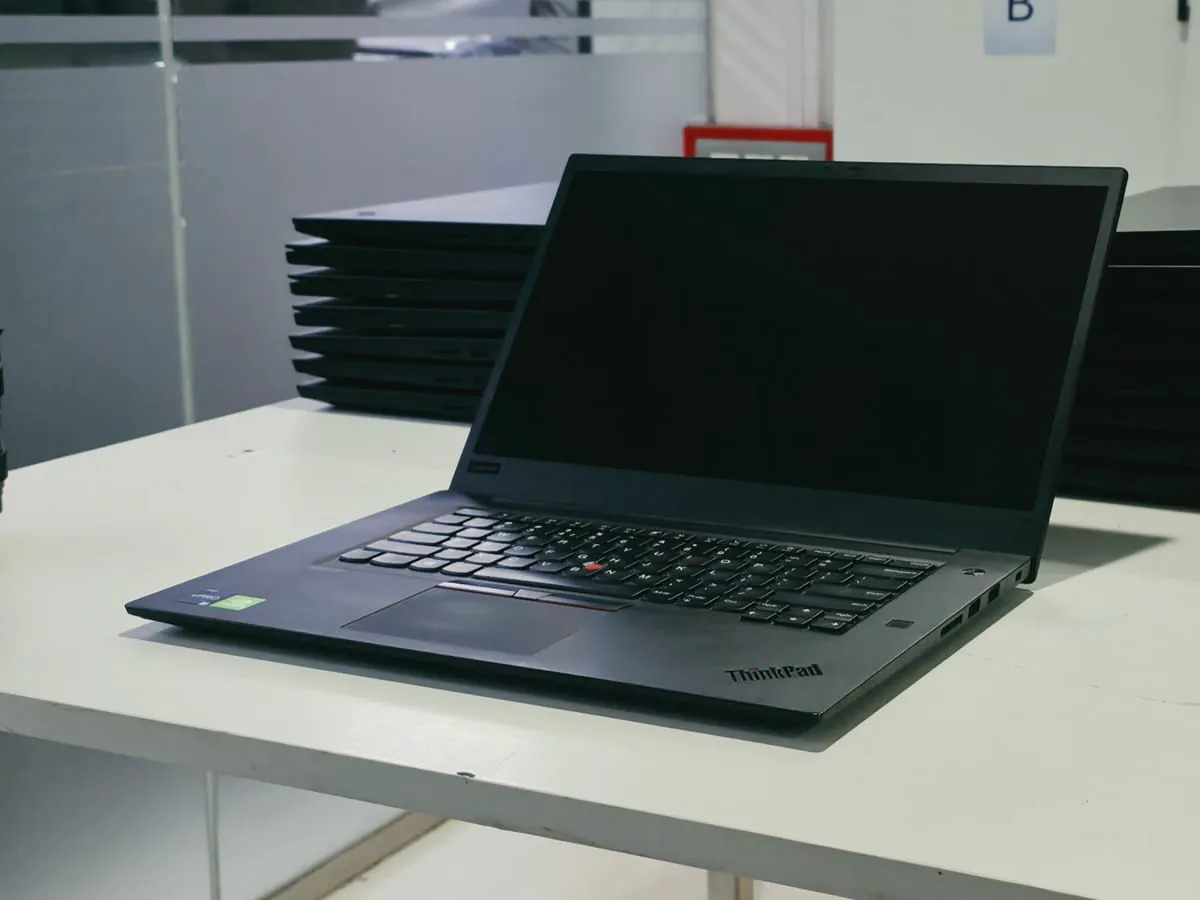

2 × USB 3.2 Gen 1 Type-A (5 Gbps, one Always On); 2 × USB-C Thunderbolt 3 (40 Gbps; data transfer, Power Delivery and DisplayPort 1.4)

Thunderbolt 3’s documented Power Delivery applies to the port capability as published; confirm charging behaviour for a specific dock setup.

1 × HDMI 2.0; 1 × SD card reader; 1 × headphone/microphone combo (3.5 mm); 1 × Kensington security slot; nano-SIM slot on WWAN models; slim-tip power input

No onboard RJ45; Ethernet via the optional Lenovo USB-C to Ethernet adapter

Intel Wi-Fi 6 AX201 (802.11ax 2×2) + Bluetooth 5.1

Lenovo notes Bluetooth 5.2 is hardware-ready but may run at a lower version due to OS limitation. Confirm the installed module on a renewed unit.

HD 720p with ThinkShutter; USA reference includes the IR hybrid option

A no-camera option also exists. Confirm the installed camera on the supplied unit.

Stereo speakers with Dolby Atmos; dual array microphone

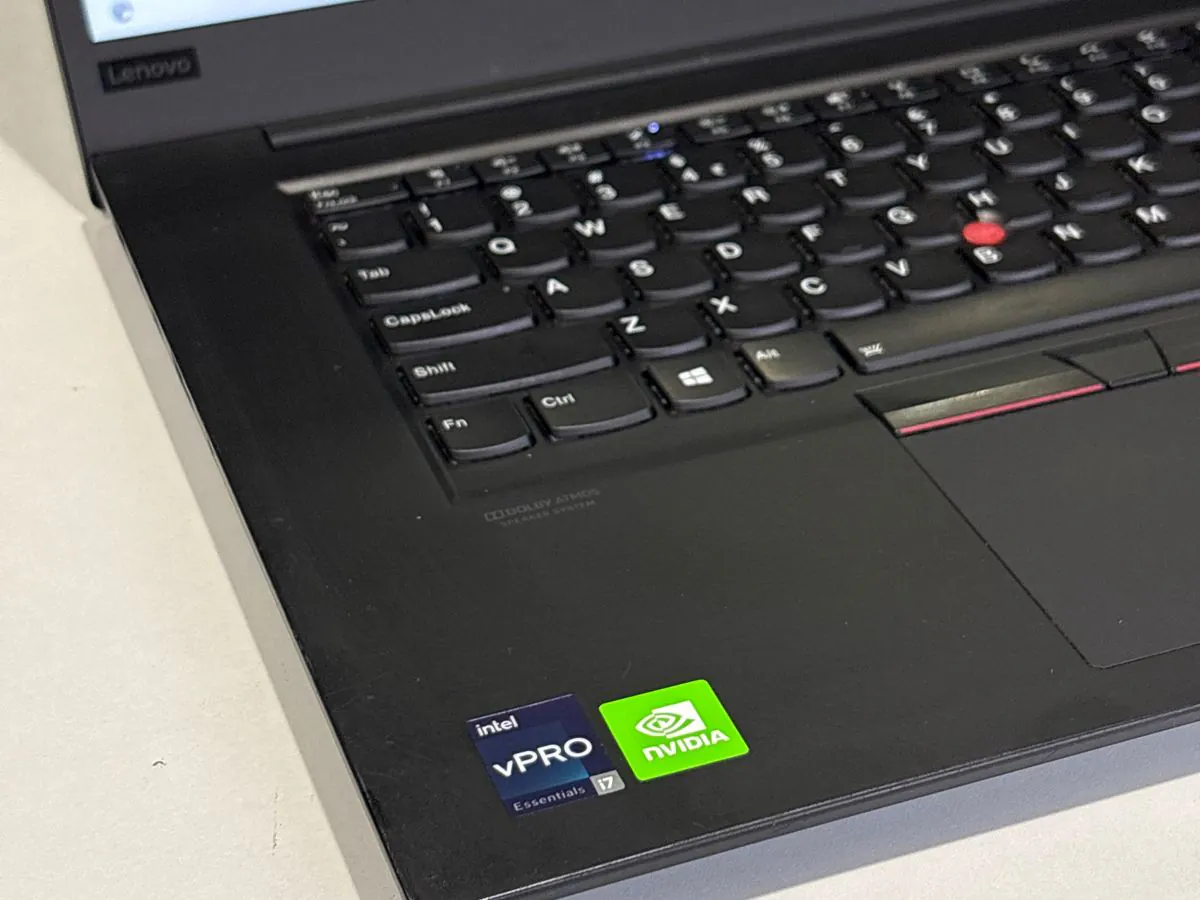

6-row spill-resistant backlit keyboard; TrackPoint and multi-touch touchpad

Reference layout is English; confirm the layout supplied for India.

Touch fingerprint reader on palm rest (match-on-chip); IR camera on the reference for Windows Hello face sign-in

IR camera is an option; confirm on the supplied unit.

Windows 10 Pro 64 (English) in the reference configuration

Windows 10 Home, Pro for Workstations, Linux and no-OS options are documented. Confirm the installed edition, version and licence on the supplied unit.
