Lenovo ThinkPad X1 Yoga 5th Gen — Intel Core i7, 10th Gen
16 GB LPDDR3-2133 (soldered) RAM · 512 GB M.2 2280 PCIe 3.0x4 NVMe SSD (Opal2) · Intel UHD Graphics (integrated) · 10th Gen Intel Core i7-10510U · 4 cores / 8 threads
Enquire about a Lenovo ThinkPad X1 Yoga 5th Gen convertible ultrabook for your team in India. This page documents an Indian reference configuration — Intel Core i7-10510U (4 cores), 16 GB of soldered LPDDR3 memory, a 512 GB M.2 NVMe SSD and a 14-inch FHD low-power IPS anti-reflection multi-touch display on a 360° hinge, with two Thunderbolt 3 ports and Rapid Charge. India availability and supplied-unit details are confirmed in your quotation.
- Processor
- 10th Gen Intel Core i7-10510U
- Display diagonal
- 14.0 inches, multi-touch
Is this the right laptop for your work?
Annotation and sign-off workflows
The 360° hinge, 400-nit anti-reflection touch display and pen support suit site engineers, auditors and sales teams who mark up documents in the field.
Executive convertibles
A quad-core i7 convertible with dual Thunderbolt 3 and Rapid Charge works as a presentation-grade executive machine.
Docking-heavy desk setups
Two Thunderbolt 3 ports plus the side docking connector drive desks and displays. Validate the specific dock and monitor combination.
Processor & graphics
The X1 Yoga 5th Gen is the 2020 convertible X1 — a 10th Gen quad-core i7 with integrated UHD graphics and dual Thunderbolt 3.
Show 5 specificationsHide specifications
| Processor | 10th Gen Intel Core i7-10510U Verified against Indian SKU 20UBS0VQ00 (machine type 20UB, announced 2020-12-08, end of support 2026-11-28): i7-10510U / 16 GB soldered / 512 GB M.2 NVMe / 14" FHD Low Power touch / fingerprint match-on-chip. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
|---|---|
| CPU | 4 cores / 8 threads PSREF processor entry: 4C/8T, 1.8 / 4.9 GHz, 8 MB. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
| Documented CPU options | 10th Gen i5-10210U/10310U (4C/8T), i7-10510U/10610U (4C/8T, 1.8–4.9 GHz, 8 MB) Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
| Graphics | Intel UHD Graphics (integrated) Lenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrixLenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| External display support | External displays via the two Thunderbolt 3 USB-C ports (DisplayPort 1.2) and HDMI 1.4b Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
Memory & upgrades
Memory is soldered with no sockets — the 16 GB reference build cannot be expanded. Storage is a single M.2 SSD.
Show 5 specificationsHide specifications
| Installed memory | 16 GB LPDDR3-2133 (soldered) Soldered with no slots — not upgradable. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
|---|---|
| Documented memory rate | LPDDR3-2133 (soldered, dual-channel) Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| RAM slots & upgrades | Memory soldered to the systemboard, no slots — not upgradable. Lenovo documents 8 GB and 16 GB offerings. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
| Installed storage | 512 GB M.2 2280 PCIe 3.0x4 NVMe SSD (Opal2) Single M.2 2280 slot; up to 2 TB documented. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
| SSD slots & upgrades | One M.2 2280 slot accepting NVMe SSDs (PCIe 3.0x4), up to 2 TB documented; Intel Optane options documented. The 512 GB reference drive can be swapped for a larger one. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
Display & size

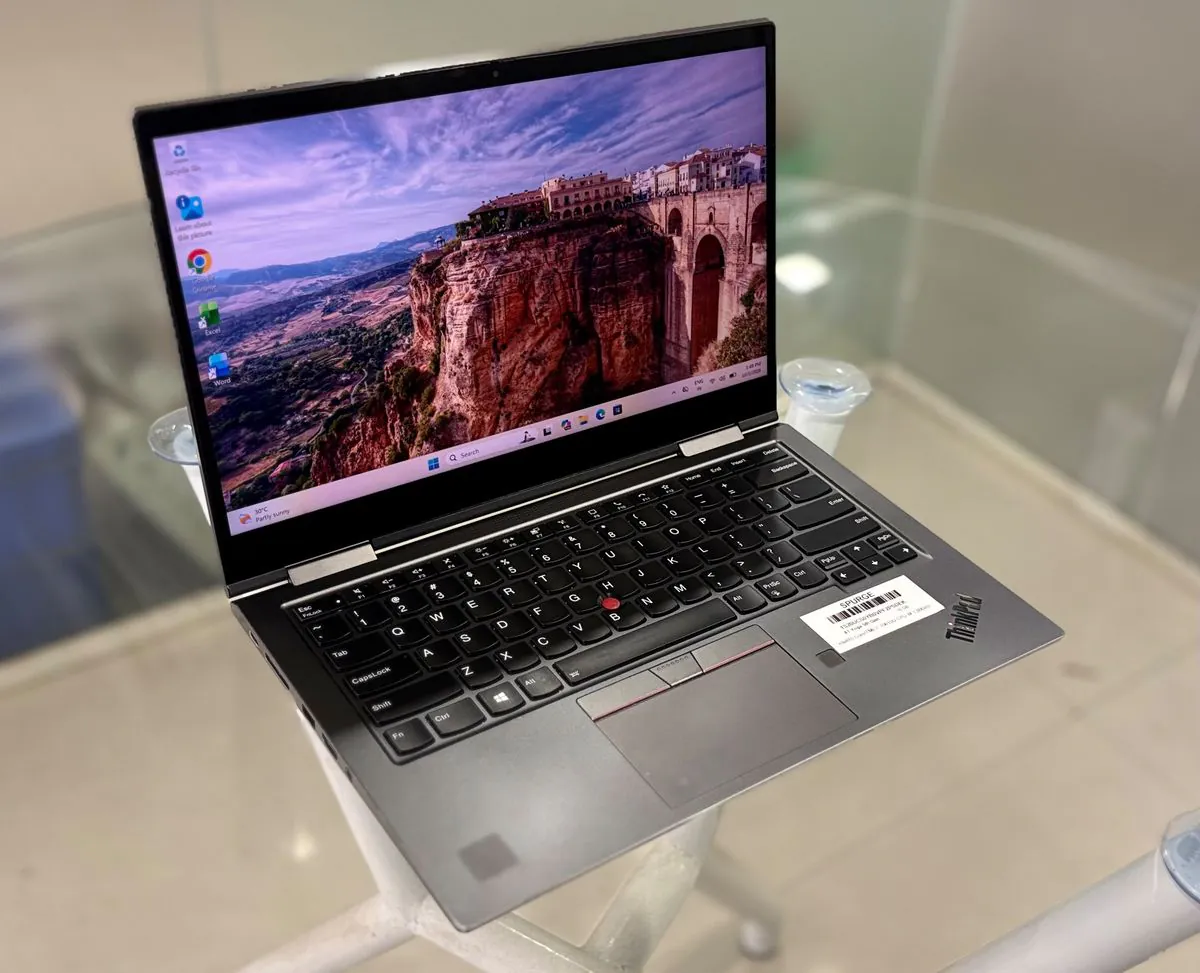

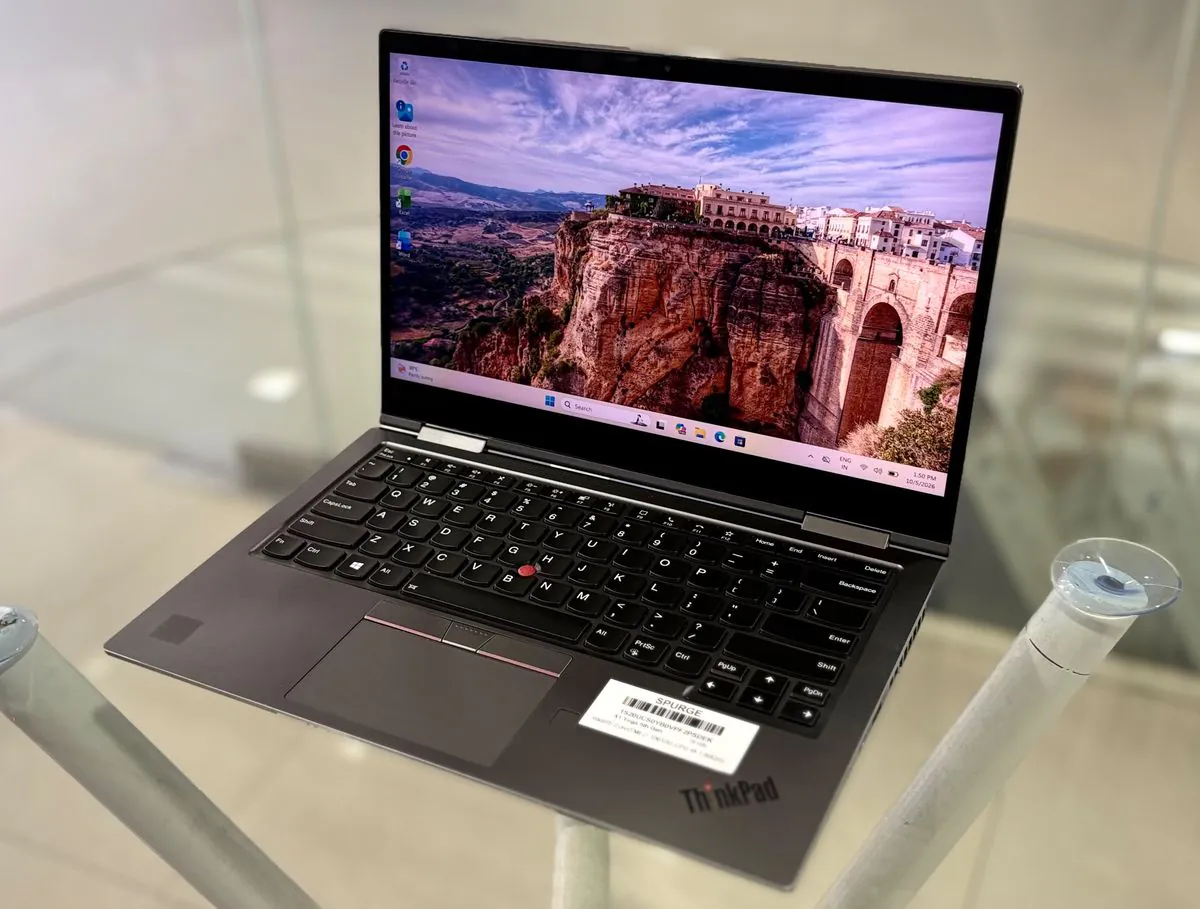

A 14-inch FHD low-power IPS anti-reflection/anti-smudge multi-touch display on a 360° hinge supports laptop, tent, stand and tablet modes. Lenovo’s support matrix lists end of support November 2026 for this machine type.
Show 5 specificationsHide specifications
| Display diagonal | 14.0 inches, multi-touch Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
|---|---|
| Resolution | 1920 × 1080 (FHD) low-power IPS 400 nits anti-reflection/anti-smudge, touch (reference) Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
| Documented panel options | FHD Low Power IPS 400 nits AR/AS touch (reference); UHD IPS and Privacy Guard options documented Confirm the supplied unit’s panel. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| Width × depth × height | 323 × 218 × 15.5 mm (non-Privacy Guard models); 15.95 mm (Privacy Guard models) Dimensions vary by panel option. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| Model weight | 1.36 kg (non-Privacy Guard models); 1.47 kg (Privacy Guard models) Published figures per panel option. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
Battery & charging
An integrated 51 Wh battery with Rapid Charge — up to 80% in one hour — and published runtime up to 19.3 hours.
Show 4 specificationsHide specifications
| Battery capacity | Integrated 51 Wh Li-Polymer Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
|---|---|
| Published battery runtime | MobileMark 2014: 19.3 hr; MobileMark 2018: 13.0 hr; JEITA 2.0: 19.3 hr Benchmark maxima; a renewed unit needs its own battery-health check. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| Fast charging | Rapid Charge: up to 80% in 1 hr with the 65 W AC adapter Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| Documented power adapter | 65 W USB-C (3-pin) AC adapter Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
Ports & wireless

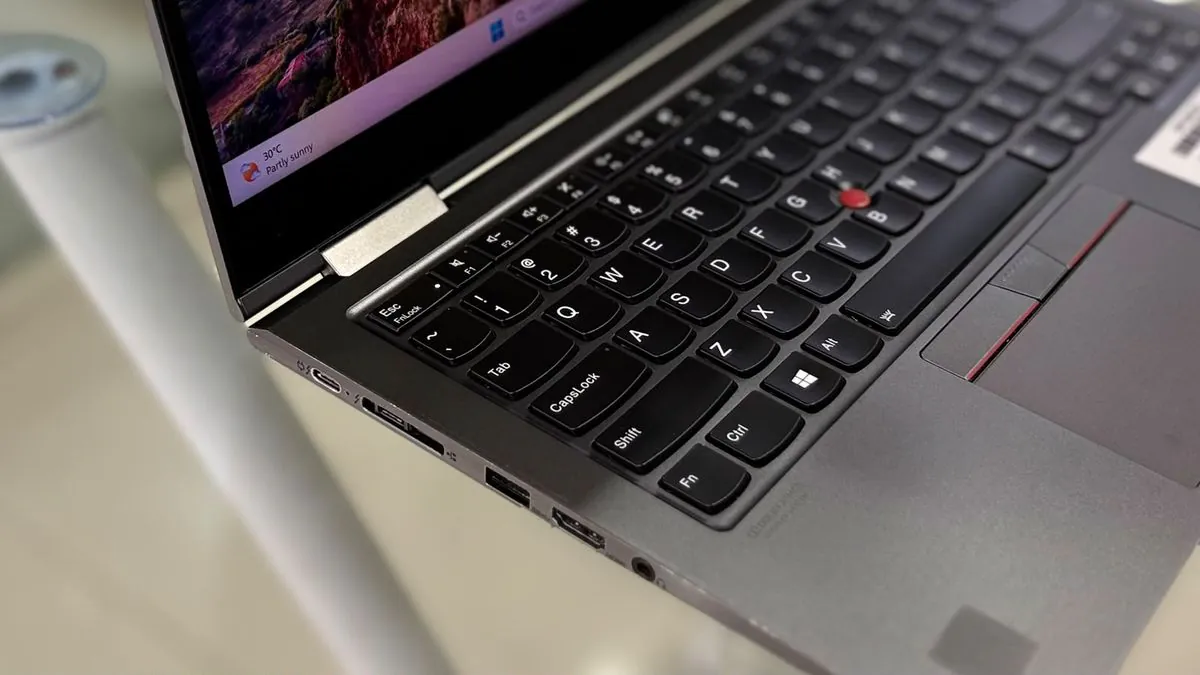

Two USB-A ports (one Always On), two Thunderbolt 3 USB-C ports (with Power Delivery 3.0 and DisplayPort 1.2), HDMI 1.4b and a side docking connector; wired Ethernet uses the extension connector — there is no onboard RJ-45 port.
Show 4 specificationsHide specifications
| USB ports | 2 × USB 3.2 Gen 1 Type-A (one Always On); 2 × USB-C 3.2 Gen 2 / Thunderbolt 3 (Power Delivery 3.0 and DisplayPort 1.2) Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
|---|---|
| Other connections | 1 × HDMI 1.4b; 1 × Ethernet extension connector; 1 × side docking connector; 1 × headphone/microphone combo (3.5 mm); optional nano-SIM slot on WWAN models Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| Ethernet | Gigabit Ethernet via the Ethernet extension connector No onboard RJ-45 — confirm the extension adapter for wired deployments. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| Wireless | Intel Wi-Fi 6 AX201 (802.11ax) 2×2 + Bluetooth 5.2 (reference); optional WWAN Confirm the installed module and WWAN on the supplied unit. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
Camera & everyday use
A 720p camera, match-on-chip fingerprint reader, backlit keyboard and convertible sensors support presentation and annotation workflows.
Show 5 specificationsHide specifications
| Camera | 720p webcam Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
|---|---|
| Speakers & microphone | Stereo speakers; dual array microphone; combo audio/microphone jack Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| Keyboard | Backlit ThinkPad keyboard with TrackPoint (lift-and-lock convertible design) Confirm layout on the supplied unit. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
| Biometric sign-in | Touch-style fingerprint reader, match-on-chip (reference SKU) Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsLenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrix |
| Operating system | Windows 10 Pro 64 (English) in the reference configuration; Windows 11 options documented Confirm the installed edition, version and licence on the supplied unit. Lenovo PSREF — ThinkPad X1 Yoga Gen 5 model matrixLenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications |
Confirm the laptop. Then confirm the terms.
- This is an Indian reference configuration (SKU 20UBS0VQ00), not a SPURGE stock record. Availability, condition, price, GST, delivery and warranty are confirmed in the SPURGE quotation.
- Memory is soldered and cannot be upgraded — the 16 GB reference build is the practical ceiling.
- Confirm the supplied unit’s panel (FHD Low Power vs UHD/Privacy Guard), WWAN, fingerprint reader, keyboard layout and OS licence.
- There is no onboard RJ-45 port — confirm the Ethernet extension adapter for wired deployments.
- Lenovo’s support matrix lists end of support on 28 November 2026 for this machine type.
- Share quantity, workload, city and required date so SPURGE can confirm supply and quote rental or purchase terms.
Related options: Laptop rentals IndiaNew laptop procurementRefurbished laptopsContact SPURGERead our sales terms.
Lenovo ThinkPad X1 Yoga 5th Gen FAQs
Can the ThinkPad X1 Yoga 5th Gen RAM be upgraded?
No. Lenovo documents the memory as soldered to the systemboard with no slots — 8 GB or 16 GB offerings exist, but nothing can be changed after purchase.
Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsHow many Thunderbolt 3 ports does it have?
Two — both USB-C 3.2 Gen 2 with Power Delivery 3.0 and DisplayPort 1.2 — alongside two USB-A ports, HDMI 1.4b and a side docking connector.
Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsCan the SSD be upgraded?
Yes — one M.2 2280 slot accepts NVMe SSDs (PCIe 3.0x4), up to 2 TB documented. The 512 GB reference drive can be swapped for a larger one.
Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsWhat is the battery life?
The integrated 51 Wh battery documents up to 19.3 hours (MobileMark 2014 / JEITA 2.0) or 13.0 hours (MobileMark 2018), with Rapid Charge to 80% in one hour.
Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product SpecificationsHow do I request this convertible from SPURGE?
Send the specification, quantity, city and required date. SPURGE confirms the exact unit configuration — including the panel, WWAN and OS licence — and quotes rental or purchase terms before an order.
Check the facts at the source.
- Lenovo PSREF — ThinkPad X1 Yoga Gen 5
Models tab: per-SKU factory configurations (2,448 rows, including an Indian row). Reference SKU 20UBS0VQ00 (India) verified: i7-10510U / 16 GB soldered LPDDR3 / 512 GB M.2 NVMe / 14" FHD Low Power touch / 51 Wh / fingerprint match-on-chip; end of support 2026-11-28. Checked .
- Lenovo PSREF — ThinkPad X1 Yoga Gen 5 Product Specifications Reference (February 13, 2022 revision)
Full specification PDF read in full: 10th Gen processors, UHD graphics, soldered LPDDR3-2133 (8/16 GB, no slots), single M.2 2280 slot (up to 2 TB), FHD Low Power/UHD/Privacy Guard touch panels with 360° hinge, 51 Wh RapidCharge battery (19.3 hr), dual Thunderbolt 3 ports with USB-A, HDMI 1.4b, Ethernet extension and dock, wireless/WWAN and security. Checked .
- Lenovo Support — ThinkPad X1 Yoga Gen 5 (machine type 20UB)
Stable model-specific support link retained for readers. Product data renders client-side; no facts are cited from it. Checked .
